PCBA Design

Your PCBA Design Partner in China - CJPCB

Since 2008, we have been dedicated to the field of PCB and PCB assembly manufacturing for 15+ years. CJ PCBA not only provides PCBA manufacturing services but also offers professional design and consulting services to customers. Leveraging our extensive industry experience and technical accumulation, we can assist customers in considering manufacturing feasibility and cost-effectiveness during the product design phase, ensuring the optimization and innovation of product designs.

We have professional technical team and leading electronic products solutions for customers to solve electronic design problems, and reduce the huge R&D investment; Moreover we also help our customers optimize/upgrade the current Designs. Our Services are start from providing creative idea, mainly for hardware, enclosure and package designs, PCB production, mold making, plastic injection molding,etc. Our main services are also aim at components sourcing and PCBA production, in order to provide the ONE-STOP Electronic Manufacturer Service and Solutions to our customer. Our faith are more easily and faster and risks to achieve the application of electronic products.

Founded on the commitment to be the most trusted partner in the industry, we strive to live up to this promise in every client engagement—upholding the highest standards of integrity in all our work.

CJPCB Design Services

Help you easily achieve your electronic product!

CJ Team is able to fully support clients’ PCB design and have the capability to take manufacturing projects from concept to reality ensuring delivery to client’s specification. Engineering support for material selection, DFMA analysis, and cost optimization. We offer finishing processes made for you.

We go beyond core design and manufacturing to offer end-to-end support. Our services include

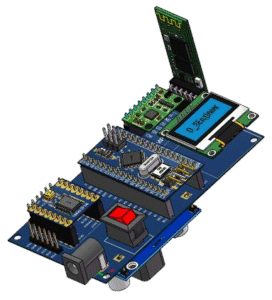

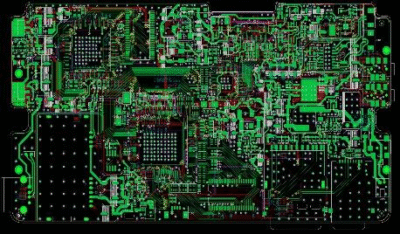

PCB Design and Layout

We have professional technical team for customers to solve electronic design problems, and reduce the huge R&D investment. Whether your new design requires a simple single-sided printed circuit board, or a multi-layer version, we can manage the PCB design and layout for you.

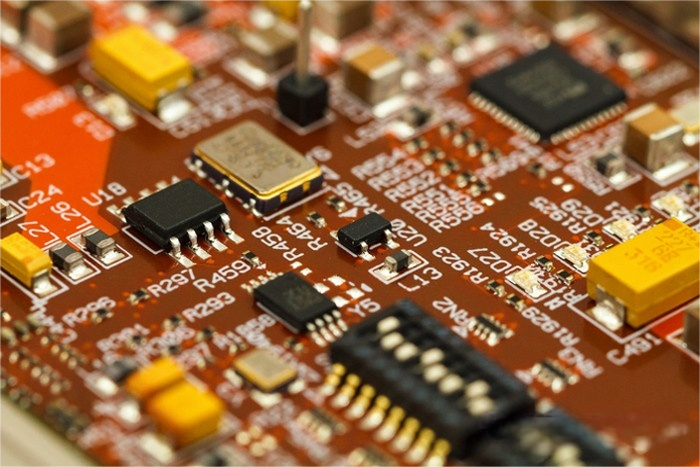

Component Selection

Our procurement team with each member averaging more than 15 years of hands-on experience can help to to choose and suggest the proper components. Backed by a well-established, multi-faceted component sourcing network and long-term stable collaborations, we’re able to obtain electronic components via reliable suppliers and global distributors.

What’s more, our hardware engineering experts can propose top-tier alternative components, broadening your sourcing choices while upholding stringent quality standards.

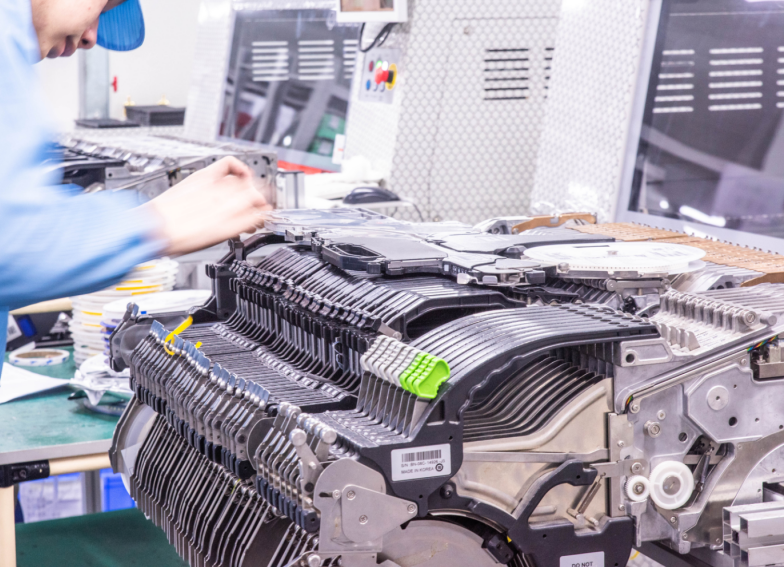

Prototyping & assembly

Moving from design and prototyping to mass production happens seamlessly. This keeps quality and efficiency consistent throughout. Your project gets dedicated oversight. We track timelines and milestones to keep things on track—from concept all the way to delivery.

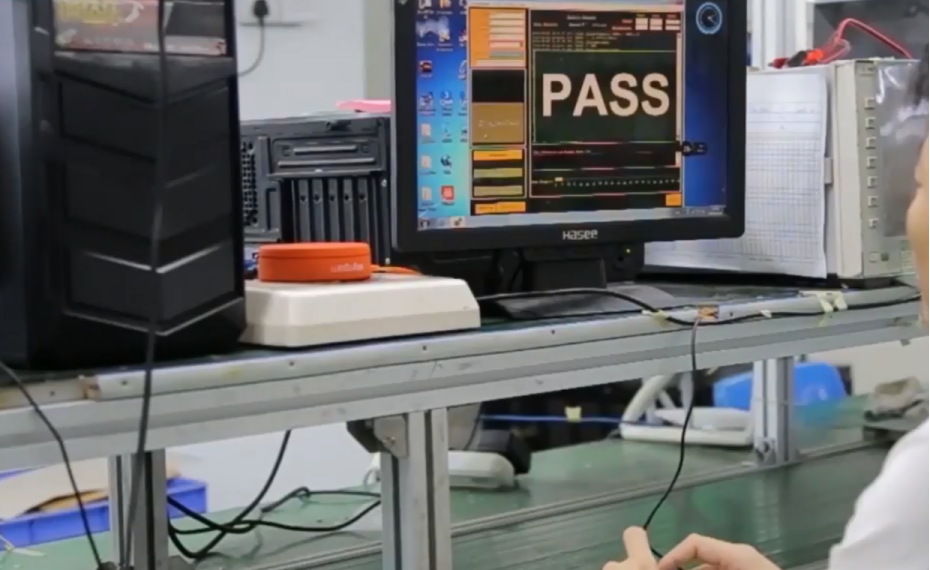

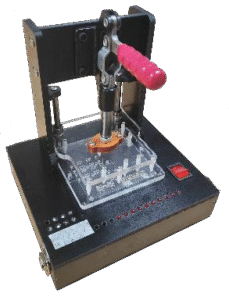

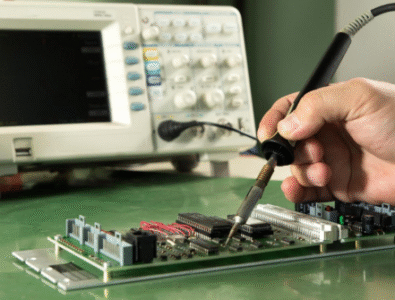

Functional testing

Rigorous functional test validating whether your design works as planned. All testing steps and results will be confirmed with you via videos or record with data, CJ team make sure all of your instructions will be listen and followed and our goal is make sure your PCBA 100% pass the test. All defective issues and reasons will be recorded and share with you for further improving action.

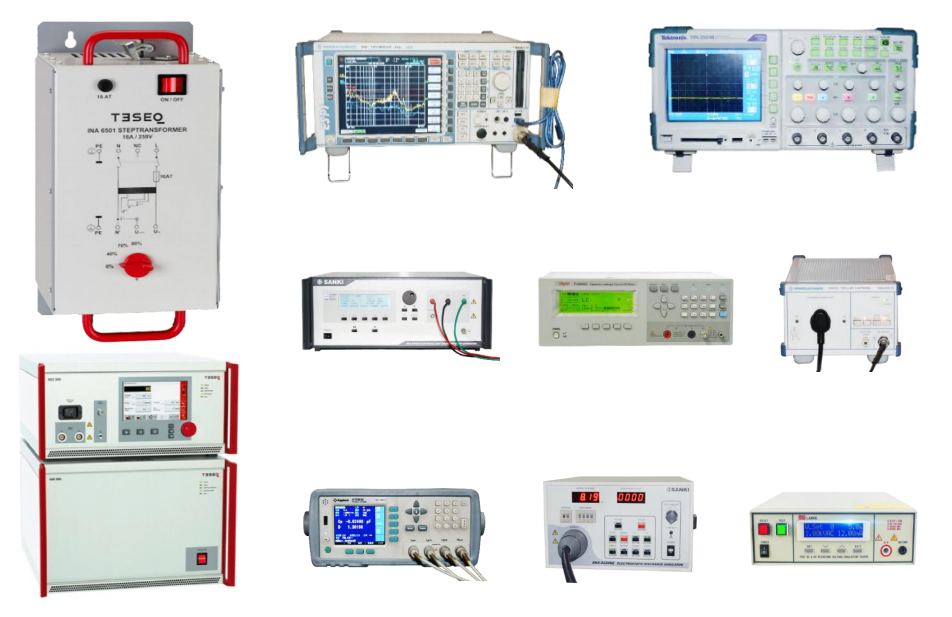

Reliability Testing

CJPCBA can optimize the layout of PCBA for customer scenarios (such as enhancing heat dissipation paths and adding protective coatings), and has passed rigorous tests and verifications – such as high and low temperature cycle tests (-55℃ to 125℃, 5000 cycles) and random vibration tests (10-2000Hz). 20g RMS, salt spray test (1000 hours, 5% NaCl solution), to ensure that PCB substrates (such as high Tg boards), components (industrial grade/automotive-grade), and soldering processes (lead-free solder, selective wave soldering) do not fail under long-term extreme environments.

Product Certification

We help with compliance testing for global certifications like CE/FCC/UL/ROHS. This streamlines your path to market access. We have professional quality assurance team and quality control system to ensure the electronic products with quality stability and trace-ability. CJ teams offer high-quality services and make sure you get projects according to the required details.

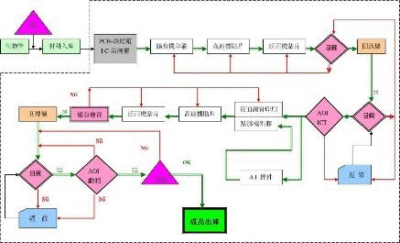

Our Development Procedure

Why Partner With Us?

One-stop Solution

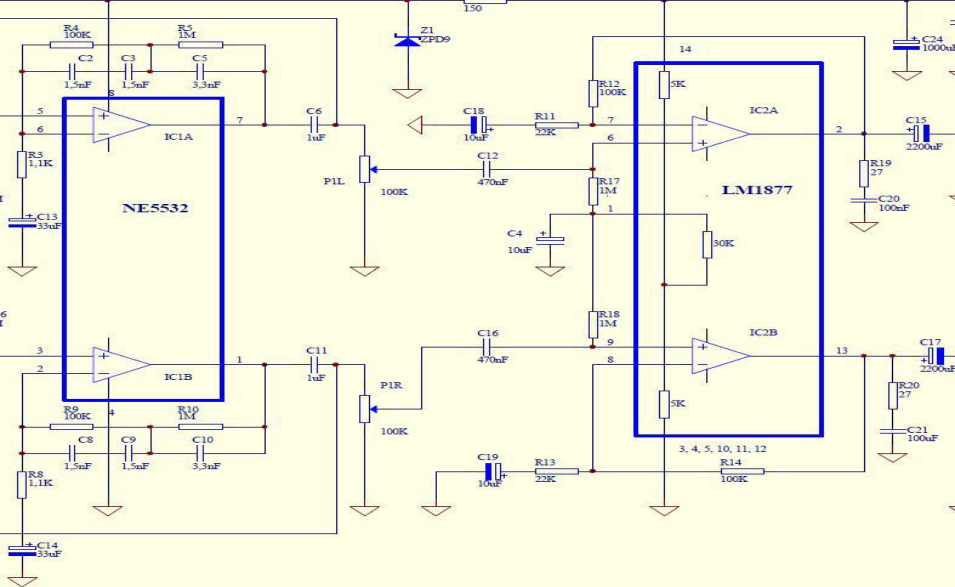

CJ Teams offer a full suite of PCBA services: from schematic design, board layout, component selection, firmware design，mechanical design to PCB,PCBA,Chip Cloning, we can help you procure components, PCB FPC making,mold making, plastic injection, assemble, package, and deliver the finished goods to you,or even drop ship to a third party.

Privacy protection

We strictly protect information with every customer who shares information with us, to ensure that no information provided by the client will be disclosed, we can also sign confidentiality agreement (NDA). Customer design files are classified as core confidential information. We implement hierarchical access control, ensuring that only authorized personnel can access.

Top Service

Customers will receive every update of project progress, ensuring both timeline and quality are meeting. We offer comprehensive after-sales service, including product maintenance, technical support and handling of customer feedback, to ensure that customers can receive timely and effective support and solutions during the use of the products.

Experienced Engineering Team

We have a highly experienced engineering team, consisting of:

5+senior electronic engineers with over 10 years of industry experience;
5+ PCBengineers with more than 8 years of professional expertise;
30+professional electronic engineers.

Our one-on-one engineering team service is dedicated to providing you with the best possible support throughout your project.

Rapid Turnaround

For simple PCB, our rapid development capability can produce the schematic diagram within 24 hours and the PCB file within 48 hours. In addition, PCBA production speed is a core strength of our factory:

PCB prototyping: Available within 24 hours.
PCBA prototyping: Samples can be delivered within 7 days.
(Note: The specific lead time is determined based on the componentslisted in the BOM.)

Get answers to all your questions you might have.

From PCBA production to full product assembly (Box Build), we provide end-to-end solutions to help you easily achieve your electronic products. It's including PCB manufacturing, component sourcing, SMT/THT, finished product assembly and testing. Service in Automotive, industrial automation, Artificial intelligence, Smart Home, Security,Power, Communications and other industries numerous well-known brand services.

Please visit our website to learn how CJ PCBA can enhance your operational efficiency and profitability. If you would like to know more about the services we offer, please contact us!

Your reliable partner in China - CJ Team

Our Certifications And Honor

CJPCB has lS09000,IS014001,ISO13458,UL,RoHS and IATF16949 certifications, etc. In addition, we help with compliance testing for global certifications like CE/FCC/UL/ROHS. This streamlines your path to market access. We have professional quality assurance team and quality control system to ensure the electronic products with quality stability. CJ teams offer high-quality services and make sure you get projects according to the required details.

Working with us will be the best experience for you.

Our PCBA Solutions Across Industries

Our products are widely used in electronics, energy, communications, lighting, electrical engineering
safety protection, electrical appliances, digital home appliances, and more.
